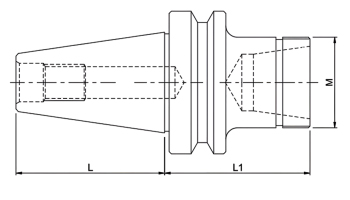

| SHRANK TAPER | ORDER CODE | DESCRIPTION | BORE |
L (mm) |
L 1 (mm) |
ØD (mm) |
|---|---|---|---|---|---|---|
| BT-30 | RM-BT30ERA-16X1 | BT-30 Adapter ER-16 | ER-16 | 45 | 80 | M22x1.5 |
| BT-30 | RM-BT30ERA-20X1 | BT-30 Adapter ER-20 | ER-20 | 45 | 80 | M25x1.5 |
| BT-30 | RM-BT30ERA-25X1 | BT-30 Adapter ER-25 | ER-25 | 45 | 80 | M32x1.5 |
| BT-30 | RM-BT30ERA-32X1 | BT-30 Adapter ER-32 | ER-32 | 45 | 60 | M40x1.5 |
| BT-30 | RM-BT30ERA-40X1 | BT-30 Adapter ER-40 | ER-40 | 45 | 621 | M50x1.5 |
| BT-40 | RM-BT40ERA-16X1 | BT-40 Adapter ER-16 | ER-16 | 65.4 | 105 | M22x1.5 |
| BT-40 | RM-BT40ERA-20X1 | BT-40 Adapter ER-20 | ER-20 | 65.4 | 105 | M25x1.5 |
| BT-40 | RM-BT40ERA-25X1 | BT-40 Adapter ER-25 | ER-25 | 65.4 | 105 | M32x1.5 |
| BT-40 | RM-BT40ERA-32X1 | BT-40 Adapter ER-32 | ER-32 | 65.4 | 64 | M40x1.5 |
| BT-40 | RM-BT40ERA-40X1 | BT-40 Adapter ER-40 | ER-40 | 65.4 | 67 | M50x1.5 |
| BT-50 | RM-BT50ERA-16X1 | BT-50 Adapter ER-16 | ER-16 | 100 | 150 | M22x1.5 |
| BT-50 | RM-BT50ERA-20X1 | BT-50 Adapter ER-20 | ER-20 | 100 | 150 | M25x1.5 |
| BT-50 | RM-BT50ERA-25X1 | BT-50 Adapter ER-25 | ER-25 | 100 | 150 | M32x1.5 |
| BT-50 | RM-BT50ERA-32X1 | BT-50 Adapter ER-32 | ER-32 | 100 | 80 | M40x1.5 |
| BT-50 | RM-BT50ERA-40X1 | BT-50 Adapter ER-40 | ER-40 | 100 | 85 | M50x1.5 |
