CAT Holders

<< Back

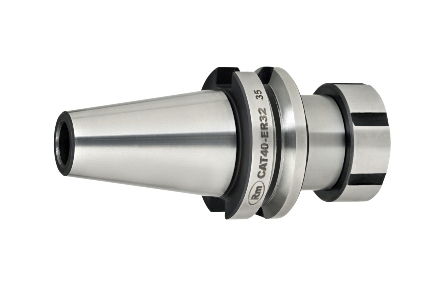

Adapter to suit ER Collets

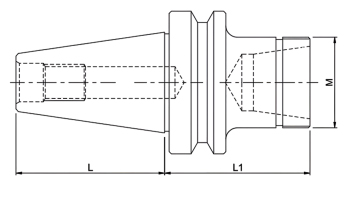

SHRANK TAPER ORDER CODE DESCRIPTION Suitable Collet L
(mm) 		L 1
(mm) 		ØD
(mm)
CAT 40 RM-CAT40ERA-16/70 CAT-40 Adapter ER-16 16 68.24 70 28
CAT 40 RM-CAT40ERA-16/100 CAT-40 Adapter ER-16 16 68.24 100 28
CAT 40 RM-CAT40ERA-16/150 CAT-40 Adapter ER-16 16 68.24 150 28
CAT 40 RM-CAT40ERA-20/70 CAT-40 Adapter ER-20 20 68.24 70 34
CAT 40 RM-CAT40ERA-20/100 CAT-40 Adapter ER-20 20 68.24 100 34
CAT 40 RM-CAT40ERA-20/150 CAT-40 Adapter ER-20 20 68.24 150 34
CAT 40 RM-CAT40ERA-25/70 CAT-40 Adapter ER-25 25 68.24 70 42
CAT 40 RM-CAT40ERA-25/100 CAT-40 Adapter ER-25 25 68.24 100 42
CAT 40 RM-CAT40ERA-25/150 CAT-40 Adapter ER-25 25 68.24 150 42
CAT 40 RM-CAT40ERA-32/70 CAT-40 Adapter ER-32 32 68.24 70 50
CAT 40 RM-CAT40ERA-32/100 CAT-40 Adapter ER-32 32 68.24 100 50
CAT 40 RM-CAT40ERA-32/150 CAT-40 Adapter ER-32 32 68.24 150 50
CAT 40 RM-CAT40ERA-40/70 CAT-40 Adapter ER-40 40 68.24 70 63
CAT 40 RM-CAT40ERA-40/100 CAT-40 Adapter ER-40 40 68.24 100 63
CAT 40 RM-CAT40ERA-40/150 CAT-40 Adapter ER-40 40 68.24 150 63
CAT 50 RM-CAT50ERA-16/70 CAT-50 Adapter ER-16 16 101.75 70 28
CAT 50 RM-CAT50ERA-16/100 CAT-50 Adapter ER-16 16 101.75 100 28
CAT 50 RM-CAT50ERA-16/150 CAT-50 Adapter ER-16 16 101.75 150 28
CAT 50 RM-CAT50ERA-20/70 CAT-50 Adapter ER-20 20 101.75 70 34
CAT 50 RM-CAT50ERA-20/100 CAT-50 Adapter ER-20 20 101.75 100 34
CAT 50 RM-CAT50ERA-20/150 CAT-50 Adapter ER-20 20 101.75 150 34
CAT 50 RM-CAT50ERA-25/70 CAT-50 Adapter ER-25 25 101.75 70 42
CAT 50 RM-CAT50ERA-25/100 CAT-50 Adapter ER-25 25 101.75 100 42
CAT 50 RM-CAT50ERA-25/150 CAT-50 Adapter ER-25 25 101.75 150 42
CAT 50 RM-CAT50ERA-32/70 CAT-50 Adapter ER-32 32 101.75 70 50
CAT 50 RM-CAT50ERA-32/100 CAT-50 Adapter ER-32 32 101.75 100 50
CAT 50 RM-CAT50ERA-32/150 CAT-50 Adapter ER-32 32 101.75 150 50
CAT 50 RM-CAT50ERA-40/70 CAT-50 Adapter ER-40 40 101.75 70 63
CAT 50 RM-CAT50ERA-40/100 CAT-50 Adapter ER-40 40 101.75 100 63
CAT 50 RM-CAT50ERA-40/150 CAT-50 Adapter ER-40 40 101.75 150 63
