| SHRANK TAPER | ORDER CODE | DESCRIPTION | BORE |
L (mm) |
L 1 (mm) |
L 2 (mm) |
L 3 (mm) |
ØD (mm) |
|---|---|---|---|---|---|---|---|---|

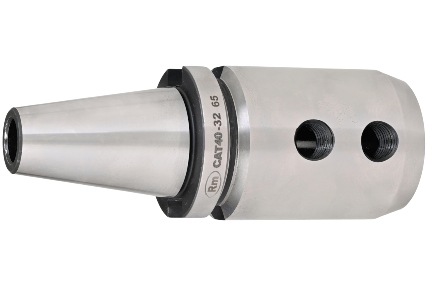

| CAT 40 | RM-CAT40SA-16 | CAT 40 SIDE LOCK ARBOR | 16 | 68.24 | 63 | 23 | - | 48 |
| CAT 40 | RM-CAT40SA-20 | CAT 40 SIDE LOCK ARBOR | 20 | 68.24 | 63 | 24 | - | 52 |
| CAT 40 | RM-CAT40SA-25 | CAT 40 SIDE LOCK ARBOR | 25 | 68.24 | 90 | 23 | 25 | 50 |
| CAT 40 | RM-CAT40SA-32 | CAT 40 SIDE LOCK ARBOR | 32 | 68.24 | 100 | 23 | 28 | 62 |
| CAT 40 | RM-CAT40SA-40 | CAT 40 SIDE LOCK ARBOR | 40 | 68.24 | 100 | 23 | 28 | 62 |
| CAT 50 | RM-CAT50SA-16 | CAT 50 SIDE LOCK ARBOR | 16 | 101.75 | 63 | 23 | - | 48 |
| CAT 50 | RM-CAT50SA-20 | CAT 50 SIDE LOCK ARBOR | 20 | 101.75 | 63 | 24 | - | 52 |
| CAT 50 | RM-CAT50SA-25 | CAT 50 SIDE LOCK ARBOR | 25 | 101.75 | 90 | 23 | 25 | 50 |
| CAT 50 | RM-CAT50SA-32 | CAT 50 SIDE LOCK ARBOR | 32 | 101.75 | 100 | 23 | 28 | 62 |
| CAT 50 | RM-CAT50SA-40 | CAT 50 SIDE LOCK ARBOR | 40 | 101.75 | 100 | 23 | 28 | 62 |
