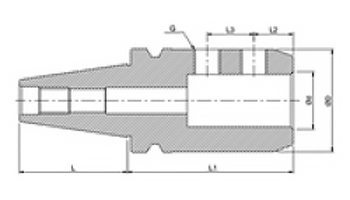

| SHRANK TAPER | ORDER CODE | DESCRIPTION | BORE |
L (mm) |
L 1 (mm) |
L 2 (mm) |
L 3 (mm) |
ØD (mm) |
|---|---|---|---|---|---|---|---|---|

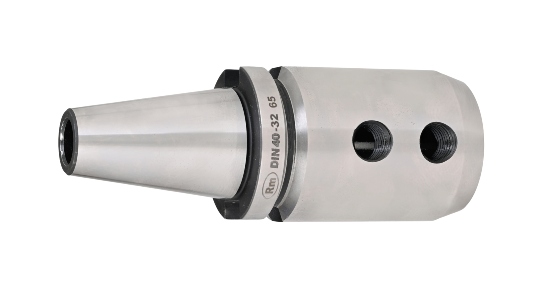

| SK 40 | RM-CAT40SA-16 | SK 40 SIDE LOCK ARBOR | 16 | 68.24 | 63 | 23 | - | 48 |
| SK 40 | RM-CAT40SA-20 | SK 40 SIDE LOCK ARBOR | 20 | 68.24 | 63 | 24 | - | 52 |
| SK 40 | RM-CAT40SA-25 | SK 40 SIDE LOCK ARBOR | 25 | 68.24 | 100 | 24 | 25 | 50 |
| SK 40 | RM-CAT40SA-32 | SK 40 SIDE LOCK ARBOR | 32 | 68.24 | 100 | 24 | 28 | 62 |
| SK 40 | RM-CAT40SA-40 | SK 40 SIDE LOCK ARBOR | 40 | 68.24 | 110 | 23 | 28 | 62 |
| SK 50 | RM-SK50SA-25/100 | CAT 50 SIDE LOCK ARBOR | 25 | 101.75 | 100 | 24 | 25 | 62 |
| SK 50 | RM-SK50SA-25/150 | CAT 50 SIDE LOCK ARBOR | 25 | 101.75 | 150 | 24 | 25 | 62 |
| SK 50 | RM-SK50SA-32/105 | CAT 50 SIDE LOCK ARBOR | 32 | 101.75 | 105 | 24 | 28 | 62 |
| SK 50 | RM-SK50SA-32/150 | CAT 50 SIDE LOCK ARBOR | 32 | 101.75 | 150 | 24 | 28 | 62 |
| SK 50 | RM-SK50SA-40/105 | CAT 50 SIDE LOCK ARBOR | 40 | 101.75 | 105 | 25 | 28 | 62 |
| SK 50 | RM-SK50SA-40/150 | CAT 50 SIDE LOCK ARBOR | 40 | 101.75 | 150 | 25 | 28 | 62 |
