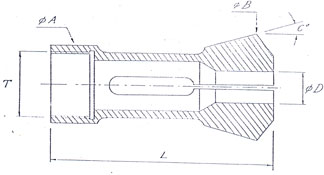

Draw - In Type Collet - External
| |
|
|
|
|
|
CAMPING RANGE OF D |
| Type |
A |
B |
L |
C° |
T |
R |
H |
SQ |
| 9045 E/G |
30.0 |
35.1 |
63.0 |
15° |
M20 X 1.5 |
20 |
- |
- |
| 9069 E/G |
38.0 |
43.0 |
80.0 |
15° |
M24 X 1.5 |
24 |
- |
- |
| CP.F 13 |
24.1 |
31.8 |
105 |
8°30’ |
M12 X 1.5 |
25 |
- |
- |
| 9069 E(AS 32)S |
53.0 |
69.4 |
142 |
15° |
M48 X 1.5 LH |
32 |
27 |
22 |
| 9070 E(AS32)B |
53.0 |
69.0 |
184 |
15° |
M48 X 1.5 LH |
32 |
27 |
22 |
| 9132E(AS 48) |
70.0 |
90.4 |
160 |
15° |
M65 X 1.5LH |
48 |
41 |
33 |
| 9178E(AS 67) |
90.0 |
115.4 |
183 |
15° |
M85 X 1.5LH |
67 |
58 |
47 |
| 9215E |
109.0 |
138.40 |
254 |
15° |
M102 X 1.5 LH |
85 |
73 |
60 |
| AMT3/4’’ |
33.92 |
43.0 |
101.9 |
15° |
27.1 x 16 tpi |
25 |
22 |
18 |
| AMT 1’’ |
38.08 |
48.0 |
100.80 |
15° |
31.8 X 1.25 |
30 |
25 |
21 |
