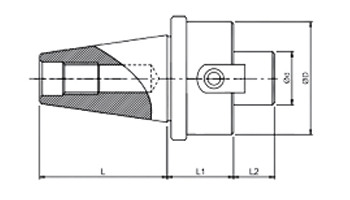

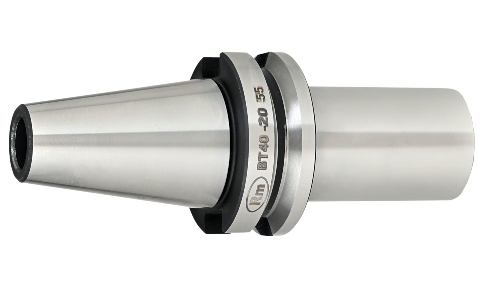

Face Mill Arbor



SHRANK TAPER ORDER CODE DESCRIPTION Cutter Bore
ØD (mm) 		L
(mm) 		L 1
(mm) 		L 2
(mm) 		ØD
(mm)
BT-30 RM-BT30FA-16/40X1 BT-30 Face Mill Arbor 16 48.4 40 17 35
BT-30 RM-BT30FA-16/80X1 BT-30 Face Mill Arbor 16 48.4 80 17 35
BT-30 RM-BT30FA-22/45X1 BT-30 Face Mill Arbor 22 48.4 45 19 45
BT-30 RM-BT30FA-22/90X1 BT-30 Face Mill Arbor 22 48.4 90 19 45
BT-30 RM-BT30FA-27/45X1 BT-30 Face Mill Arbor 27 48.4 45 21 52
BT-30 RM-BT30FA-27/90X1 BT-30 Face Mill Arbor 27 48.4 90 21 52
BT-30 RM-BT30FA-32/90X1 BT-30 Face Mill Arbor 32 48.4 90 21 58
BT-40 RM-BT40FA-16/60X1 BT-40 Face Mill Arbor 16 65.4 40 17 35
BT-40 RM-BT40FA-16/100X1 BT-40 Face Mill Arbor 16 65.4 100 17 35
BT-40 RM-BT40FA-16/150X1 BT-40 Face Mill Arbor 16 65.4 150 17 35
BT-40 RM-BT40FA-16/200X1 BT-40 Face Mill Arbor 16 65.4 200 17 35
BT-40 RM-BT40FA-22/50X1 BT-40 Face Mill Arbor 22 65.4 50 19 45
BT-40 RM-BT40FA-22/100X1 BT-40 Face Mill Arbor 22 65.4 100 19 45
BT-40 RM-BT40FA-22/150X1 BT-40 Face Mill Arbor 22 65.4 150 19 45
BT-40 RM-BT40FA-22/200X1 BT-40 Face Mill Arbor 22 65.4 200 19 45
BT-40 RM-BT40FA-22/250X1 BT-40 Face Mill Arbor 22 65.4 250 19 45
BT-40 RM-BT40FA-22/300X1 BT-40 Face Mill Arbor 22 65.4 300 19 45
BT-40 RM-BT40FA-22/350X1 BT-40 Face Mill Arbor 22 65.4 350 19 45
BT-40 RM-BT40FA-27/60X1 BT-40 Face Mill Arbor 27 65.4 60 21 52
BT-40 RM-BT40FA-27/100X1 BT-40 Face Mill Arbor 27 65.4 100 21 52
BT-40 RM-BT40FA-27/150X1 BT-40 Face Mill Arbor 27 65.4 150 21 52
BT-40 RM-BT40FA-27/200X1 BT-40 Face Mill Arbor 27 65.4 200 21 52
BT-40 RM-BT40FA-27/250X1 BT-40 Face Mill Arbor 27 65.4 250 21 52
BT-40 RM-BT40FA-27/300X1 BT-40 Face Mill Arbor 27 65.4 300 24 52
BT-40 RM-BT40FA-32/70X1 BT-40 Face Mill Arbor 32 65.4 70 24 58
BT-40 RM-BT40FA-32/100X1 BT-40 Face Mill Arbor 32 65.4 100 24 58
BT-40 RM-BT40FA-32/150X1 BT-40 Face Mill Arbor 32 65.4 150 27 58
BT-40 RM-BT40FA-40/70X1 BT-40 Face Mill Arbor 40 65.4 70 27 63
BT-40 RM-BT40FA-40/100X1 BT-40 Face Mill Arbor 40 65.4 100 27 63
BT-40 RM-BT40FA-40/150X1 BT-40 Face Mill Arbor 40 65.4 150 27 63
BT-50 RM-BT50FA-16/60X1 BT-50 Face Mill Arbor 16 101.8 60 17 35
BT-50 RM-BT50FA-16/100X1 BT-50 Face Mill Arbor 16 101.8 100 17 35
BT-50 RM-BT50FA-16/150X1 BT-50 Face Mill Arbor 16 101.8 150 17 35
BT-50 RM-BT50FA-16/200X1 BT-50 Face Mill Arbor 16 101.8 200 17 35
BT-50 RM-BT50FA-22/60X1 BT-50 Face Mill Arbor 22 101.8 50 19 45
BT-50 RM-BT50FA-22/100X1 BT-50 Face Mill Arbor 22 101.8 100 19 45
BT-50 RM-BT50FA-22/150X1 BT-50 Face Mill Arbor 22 101.8 150 19 45
BT-50 RM-BT50FA-22/200X1 BT-50 Face Mill Arbor 22 101.8 200 19 45
BT-50 RM-BT50FA-22/250X1 BT-50 Face Mill Arbor 22 101.8 250 19 45
BT-50 RM-BT50FA-22/300X1 BT-50 Face Mill Arbor 22 101.8 300 19 45
BT-50 RM-BT50FA-27/60X1 BT-50 Face Mill Arbor 27 101.8 60 21 52
BT-50 RM-BT50FA-27/100X1 BT-50 Face Mill Arbor 27 101.8 100 21 52
BT-50 RM-BT50FA-27/200X1 BT-50 Face Mill Arbor 27 101.8 200 21 52
BT-50 RM-BT50FA-27/250X1 BT-50 Face Mill Arbor 27 101.8 250 21 52
BT-50 RM-BT50FA-27/300X1 BT-50 Face Mill Arbor 27 101.8 300 21 52
BT-50 RM-BT50FA-32/75X1 BT-50 Face Mill Arbor 32 101.8 75 24 58
BT-50 RM-BT50FA-32/100X1 BT-50 Face Mill Arbor 32 101.8 100 24 58
BT-50 RM-BT50FA-32/150X1 BT-50 Face Mill Arbor 32 101.8 150 24 58
BT-50 RM-BT50FA-32/200X1 BT-50 Face Mill Arbor 32 101.8 200 24 58
BT-50 RM-BT50FA-32/250X1 BT-50 Face Mill Arbor 32 101.8 250 24 58
BT-50 RM-BT50FA-40/75X1 BT-50 Face Mill Arbor 40 101.8 75 27 70
BT-50 RM-BT50FA-40/100X1 BT-50 Face Mill Arbor 40 101.8 100 27 70
BT-50 RM-BT50FA-40/150X1 BT-50 Face Mill Arbor 40 101.8 150 27 70
BT-50 RM-BT50FA-40/200X1 BT-50 Face Mill Arbor 40 101.8 200 27 70
BT-50 RM-BT50FA-40/250X1 BT-50 Face Mill Arbor 40 101.8 250 27 70
