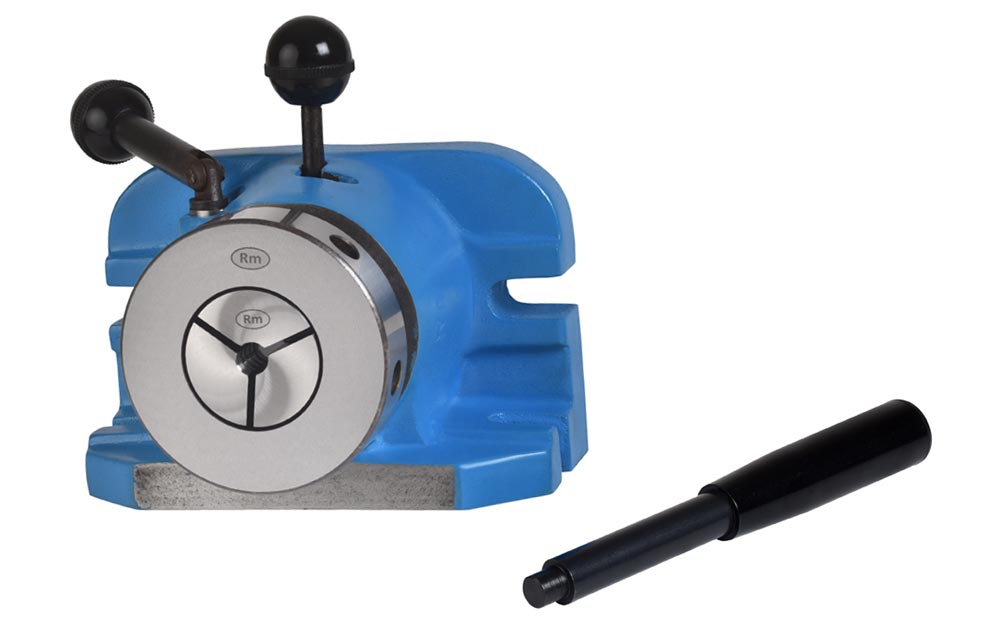

Indexing Fixtures
Product Overview
Our advanced Indexing Fixture is designed to streamline high-precision component operations such as drilling, tapping, PCD drilling, square and hexagonal machining, and profiling. Engineered for both horizontal and vertical machining, this fixture replaces traditional vices and chucks, offering superior accuracy, reduced cycle time, and repeatable runout control without manual intervention for each part.
Fixture Features
-
Multi-Indexing Capability
- Easily index to 4 positions (90°) for square components
- Rotate to 6 positions (60°) for hexagon components
- Supports custom 1mm to 42mm indexing for special or complex parts
- Saves time with quick and accurate angle changes
- We make Milling Indexing plate 2,3,4,6,8, and 12
-
High Runout Accuracy
- No need to check runout for each component
- Fixture clamping ensures perfect alignment every time
- Maintains precision and consistency in every operation
- Great for mass production – reduces setup time and manual errors
-
Ideal for All Machining Operations
- Works for drilling, tapping, PCD drilling, profiling, etc.
- Supports both vertical and horizontal machining
- Increases efficiency compared to vice or chuck systems
Key Operations Supported
- Drilling
- Tapping
- PCD (Pitch Circle Diameter) Drilling
- Square Profiling (4 Indexing Positions)
- Hexagon Profiling (6 Indexing Positions)
- Custom Profile Machining
Applications
- CNC Turning and Milling Centers
- Multi-Operation Machining Setups
- High-Volume Component Manufacturing
- PCD/Slot/Profile Applications with Angular Indexing
Available Configurations
- Horizontal and Vertical Models
- Custom Indexing Plates Available
- Compatible with Standard CNC and Special Purpose Machines
