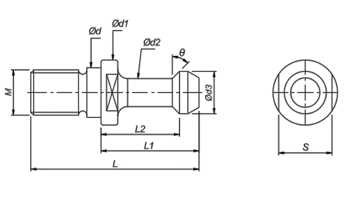

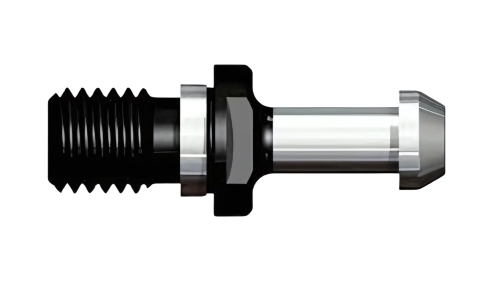

| SHRANK TAPER | ORDER CODE | ANGLE | M |
ØD (mm) |
ØD1 (mm) |
ØD2 (mm) |
ØD3 (mm) |
L (mm) |
L 1 (mm) |
s (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| BT-30 | RM-BT30PS-12X1 | 30°/45° | M12 | 13 | 16 | 7 | 11 | 43 | 23 | 12 |
| BT-40 | RM-BT40PS-16X1 | 45° | M16 | 17 | 23 | 10 | 15 | 60 | 35 | 19 |
| BT-50 | RM-BT50PS-24X1 | 30°/45°/90° | M24 | 25 | 35 | 14 | 22 | 90 | 50 | 24 |
