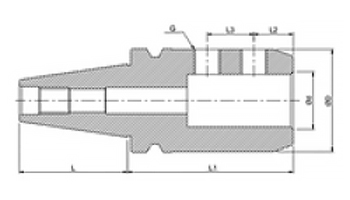

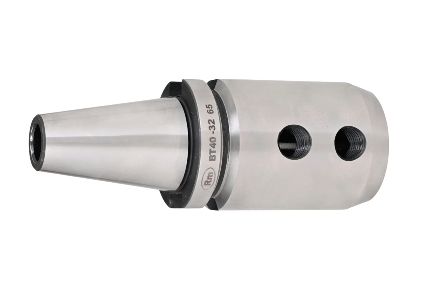

| SHRANK TAPER | ORDER CODE | DESCRIPTION |
L (mm) |
L 1 (mm) |
L 2 (mm) |
L 3 (mm) |
Bore ØD (mm) |
ØD (mm) |
|---|---|---|---|---|---|---|---|---|
| BT-30 | RM-BT30SA-10/50 | BT-30 Side Lock Arbor | 48.4 | 50 | 20 | - | 10 | 35 |
| BT-30 | RM-BT30SA-12/50 | BT-30 Side Lock Arbor | 48.4 | 50 | 22 | - | 12 | 42 |
| BT-30 | RM-BT30SA-16/63 | BT-30 Side Lock Arbor | 48.4 | 63 | 23 | - | 16 | 48 |
| BT-30 | RM-BT30SA-20/63 | BT-30 Side Lock Arbor | 48.4 | 63 | 24 | - | 20 | 52 |
| BT-30 | RM-BT30SA-25/80 | BT-30 Side Lock Arbor | 48.4 | 80 | 24 | - | 25 | 65 |
| BT-30 | RM-BT30SA-32/90 | BT-30 Side Lock Arbor | 48.4 | 90 | 24 | - | 32 | 65 |
| BT-40 | RM-BT40SA-10/63 | BT-40 Side Lock Arbor | 48.4 | 63 | 20 | - | 10 | 35 |
| BT-40 | RM-BT40SA-12/63 | BT-40 Side Lock Arbor | 48.4 | 63 | 22 | - | 12 | 42 |
| BT-40 | RM-BT40SA-16/63 | BT-40 Side Lock Arbor | 48.4 | 63 | 23 | - | 16 | 48 |
| BT-40 | RM-BT40SA-16/120 | BT-40 Side Lock Arbor | 48.4 | 120 | 24 | - | 16 | 48 |
| BT-40 | RM-BT40SA-20/63 | BT-40 Side Lock Arbor | 48.4 | 63 | 24 | - | 20 | 52 |
| BT-40 | RM-BT40SA-20/120 | BT-40 Side Lock Arbor | 48.4 | 120 | 24 | - | 20 | 52 |
| BT-40 | RM-BT40SA-25/90 | BT-40 Side Lock Arbor | 48.4 | 90 | 24 | 25 | 25 | 50 |
| BT-40 | RM-BT40SA-25/150 | BT-40 Side Lock Arbor | 48.4 | 150 | 24 | 25 | 25 | 50 |
| BT-40 | RM-BT40SA-32/60 | BT-40 Side Lock Arbor | 48.4 | 60 | 24 | 28 | 32 | 56 |
| BT-40 | RM-BT40SA-32/100 | BT-40 Side Lock Arbor | 48.4 | 100 | 24 | 28 | 32 | 62.3 |
| BT-40 | RM-BT40SA-32/150 | BT-40 Side Lock Arbor | 48.4 | 150 | 24 | 28 | 32 | 62.3 |
| BT-40 | RM-BT40SA-40/100 | BT-40 Side Lock Arbor | 48.4 | 100 | 25 | 28 | 40 | 62.5 |
| BT-40 | RM-BT40SA-40/150 | BT-40 Side Lock Arbor | 48.4 | 150 | 25 | 28 | 40 | 62.5 |
| BT-50 | RM-BT50SA-16/90 | BT-50 Side Lock Arbor | 101.8 | 90 | 24 | - | 16 | 48 |
| BT-50 | RM-BT50SA-16/150 | BT-50 Side Lock Arbor | 101.8 | 150 | 24 | - | 16 | 48 |
| BT-50 | RM-BT50SA-16/200 | BT-50 Side Lock Arbor | 101.8 | 200 | 24 | - | 20 | 48 |
| BT-50 | RM-BT50SA-20/100 | BT-50 Side Lock Arbor | 101.8 | 100 | 24 | - | 20 | 52 |
| BT-50 | RM-BT50SA-20/150 | BT-50 Side Lock Arbor | 101.8 | 150 | 24 | - | 20 | 52 |
| BT-50 | RM-BT50SA-20/200 | BT-50 Side Lock Arbor | 101.8 | 200 | 24 | - | 20 | 52 |
| BT-50 | RM-BT50SA-25/100 | BT-50 Side Lock Arbor | 101.8 | 100 | 24 | 25 | 25 | 65 |
| BT-50 | RM-BT50SA-25/150 | BT-50 Side Lock Arbor | 101.8 | 150 | 24 | 25 | 25 | 65 |
| BT-50 | RM-BT50SA-25/200 | BT-50 Side Lock Arbor | 101.8 | 200 | 24 | 25 | 25 | 65 |
| BT-50 | RM-BT50SA-32/105 | BT-50 Side Lock Arbor | 101.8 | 105 | 24 | 28 | 32 | 72 |
| BT-50 | RM-BT50SA-32/150 | BT-50 Side Lock Arbor | 101.8 | 150 | 24 | 28 | 32 | 72 |
| BT-50 | RM-BT50SA-32/200 | BT-50 Side Lock Arbor | 101.8 | 200 | 24 | 28 | 32 | 72 |
| BT-50 | RM-BT50SA-40/105 | BT-50 Side Lock Arbor | 101.8 | 105 | 24 | 28 | 40 | 72 |
| BT-50 | RM-BT50SA-40/150 | BT-50 Side Lock Arbor | 101.8 | 150 | 25 | 28 | 40 | 72 |
| BT-50 | RM-BT50SA-40/200 | BT-50 Side Lock Arbor | 101.8 | 200 | 25 | 28 | 40 | 72 |
| BT-50 | RM-BT50SA-50/100 | BT-50 Side Lock Arbor | 101.8 | 100 | 25 | 28 | 50 | 82 |
| BT-50 | RM-BT50SA-50/150 | BT-50 Side Lock Arbor | 101.8 | 150 | 25 | 28 | 50 | 82 |
